電纜主要技術參數1、 20℃時導體最大直流電阻

導體標稱截面mm2

nominalcrosssection area of conductor

20℃時導體最大直流電阻Ω/kmMax DC resistance of conductor at 20℃

導體標稱截面 mm2

nominal cross section area of

conductor

20℃時導體最大直流電阻Ω/km

Max DC resistance of conductor at20℃

0.5

36.0

25

0.727

0.75

24.5

35

0.524

1.0

18.1

50

0.387

1.5

12.1

70

0.268

2.5

7.41

95

0.193

4

4.61

120

0.153

6

3.08

150

0.124

10

1.83

185

0.0991

16

1.15

240

0.0754

2、 交流電壓試驗  電壓應依次施加在每一絕緣導體對其余導體和繞包金屬層之間施加試驗電壓3500V/5min， 絕緣應無擊穿。 試驗應在環境溫度下進行。

電纜型號名稱：

型號Type

名稱Description

BPYJVTP2

銅芯交聯聚乙烯絕緣聚氯乙烯護套銅絲纏繞+銅帶繞包屏蔽變頻電纜

Frequency converter cable with Cu core, XLPE insulation, PVC sheath, copper wire winding plus coppertape wrapping shielding

ZR-BPYJVTP2

銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅絲纏繞+銅帶繞包屏蔽阻燃型變頻電纜Flame retardant type frequency converter cable with Cu core, XLPE insulation, ?  ame retardant PVC sheath, copper wire winding plus copper tape wrapping shielding

BPYJVP12R

銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包+銅絲編織雙屏蔽變頻軟電纜

Frequency Converter soft cable with Cu core, XLPE insulation, PVC sheath, copper tape wrapping plus copper wire braided dual shielding

ZR-BPYJVP12R

銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅帶繞包+銅絲編織雙屏蔽阻燃型變頻軟電纜Flame retardant type frequency converter soft cable with Cu core, XLPE insulation, ?  ame retardant PVCsheath, copper tape wrapping plus copper wire braided dual shielding

BPYJVPX13R

銅芯交聯聚乙烯絕緣聚氯乙烯護套鋁帶繞包+鍍錫銅絲編織雙屏蔽變頻軟電纜Frequency converter soft cable with Cu core, XLPE insulation, PVC sheath, aluminum tape wrapping

plus tinned copper wire braided dual shielding

ZR-BPYJVPX13R

銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套鋁帶繞包+鍍錫銅絲編織雙屏蔽阻燃型變頻軟電纜Flame retardant type frequency converter soft cable with Cu core, XLPE insulation, ?  ame retardant PVC

sheath, aluminum tape wrapping plus tinned copper wire braided dual shielding

電纜型號說明：

項目Item

代號

說明

系列代號series

BP

變頻電纜frequency

絕緣代號insulation

YJ

交聯聚乙烯絕緣

護套代號sheath

V

E

聚氯乙烯護套PVC sheath

無鹵低煙聚烯烴護套 low smoke & free halogen polyole?  n sheath

屏蔽代號shielding

TP2

P12

PX13

銅心導體+銅帶繞包屏蔽 concentric conductor plus copper tape wrapped shielding

銅帶繞包+銅絲編織屏蔽copper tape wrapping plus copper wire braided shielding

鋁帶繞包+鍍錫銅絲編織屏蔽Aluminum tape wrapping plus tinned copper wire braided shielding

鎧裝代號armoring

22

23

鋼帶鎧裝聚氯乙烯護套

steel tape armor PVC sheath

鋼帶鎧裝聚烯烴護套

steel tape armor polyole?  n sheath

阻燃代號?

ZR

阻燃型 （C類）

?  ame-retardant type (category C)

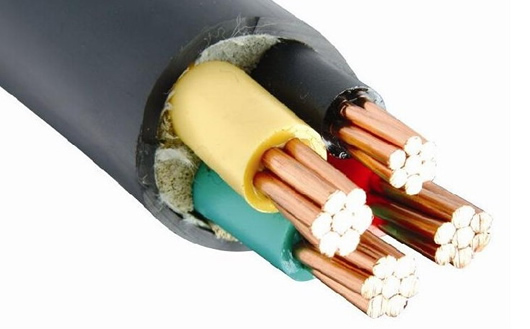

主線芯導體（5類導體） Conductor of main core(category 5)

主線芯絕緣（XLPE） Insulation of main core(XLPE)

副線芯導體（5類導體） Conductor of auxiliary core(category 5)

副線芯絕緣（XLPE） Insulation of auxiliary core(XLPE)

填充 Filling

繞包層 Wrapping layer

銅帶 （或鋁帶）繞包屏蔽 Copper tape(aluminum tape)wrapped shielding

（鍍錫）銅絲編織屏蔽 (Tinned)copper wire braided shielding

（阻燃）聚氯乙烯外護套 (Flame-retarcant)PVC outer sheath

規格參數：BPYJVTP2、 ZR-BPYJVTP2電纜 3+1結構、外徑，重量及電纜載流量。

規格

近似外徑mm

重量kg/km

電纜載流量A

3*4+1*2.5

16.0

334

34

3*6+1*4

17.3

430

45

3*10+1*6

20.2

627

53

3*16+1*10

22.7

833

84

3*25+1*16

27.4

1308

109

3*35+1*16

28.9

1718

132

3*50+1*25

30.2

3059

159

3*70+1*35

32.8

3445

195

3*95+1*50

34.9

4172

237

3*120+1*70

39.6

5055

274

3*150+1*70

44.2

5410

310

3*185+1*95

48.5

7062

355

3*240+1*120

54.6

9811

416

BPYJVP12R、ZR-BPYJVP12 R BPYJVPX13R、ZR-BPYJVPX13R 3+3結構、外徑，重量及電纜載流量。

規格

近似外徑mm

重量kg/km

電纜載流量A

3*2.5+3*0.5

12.5

232

26

3*4+3*0.75

14.0

330

34

3*6+3*1.0

15.4

422

45

3*10+3*1.5

19.6

621

53

3*16+3*2.5

22.7

820

84

3*25+3*4

28.0

1310

109

3*35+3*6

29.4

1723

132

3*50+3*10

36.3

3075

159

3*70+3*10

40.0

3454

195

3*95+3*16

45.5

4180

237

3*120+3*16

50.4

5100

274

3*150+3*25

55.5

5432

310

3*185+3*25

60.6

7098

355
